We will use the following libraries in this post:
All the data sets used in this post can be found here and code can be downloaded from here.

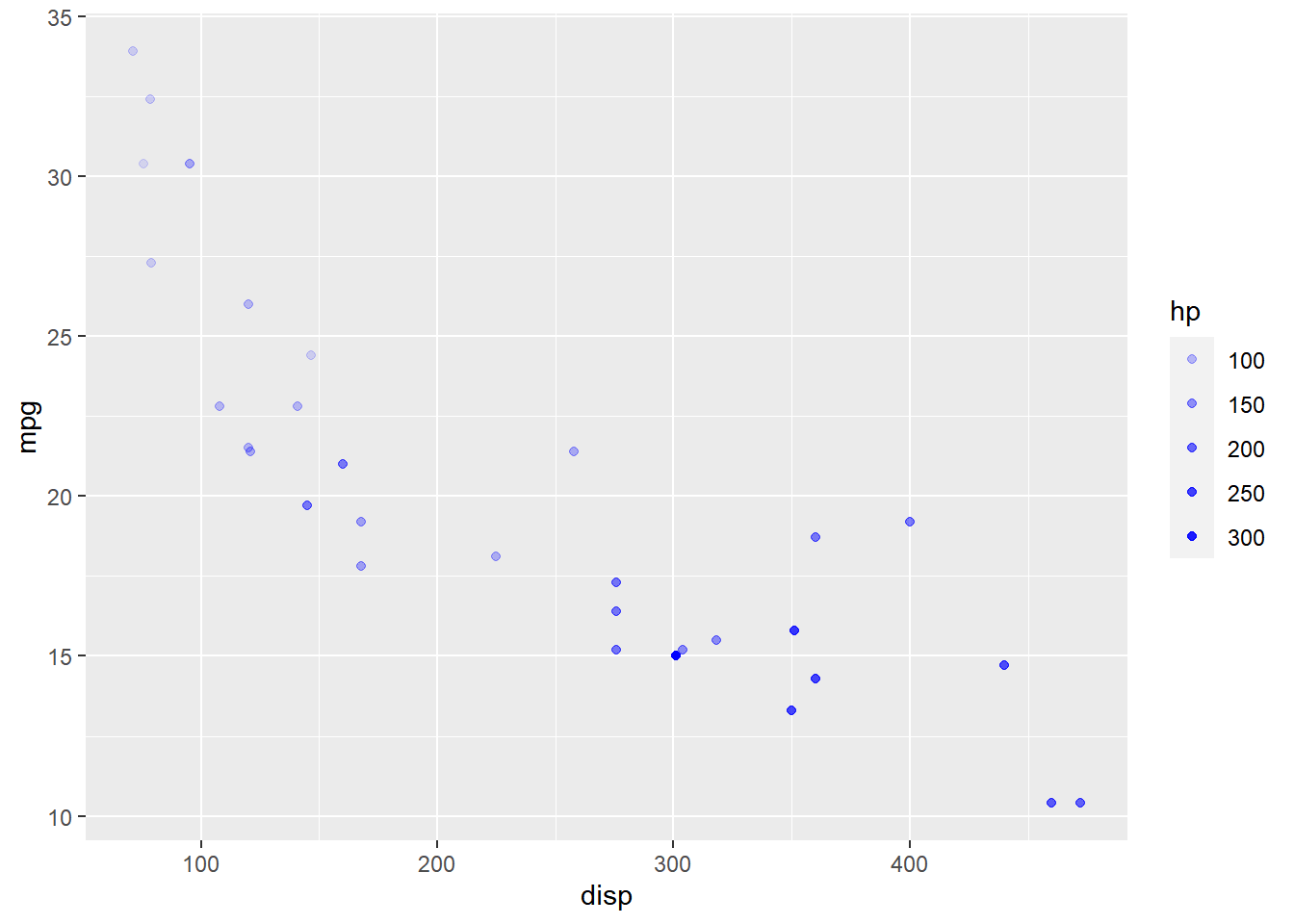

Let us start with a scatter plot examining the relationship between displacement and miles per gallon from the mtcars data set. We will map the transparency of the points to the hp variable. Remember, alpha must always be mapped to a continuous variable.
ggplot(mtcars) +
geom_point(aes(disp, mpg, alpha = hp), color = 'blue')
As you can see, the legend acts as a guide for the alpha aesthetic. Now, let us learn to modify the different aspects of the legend.

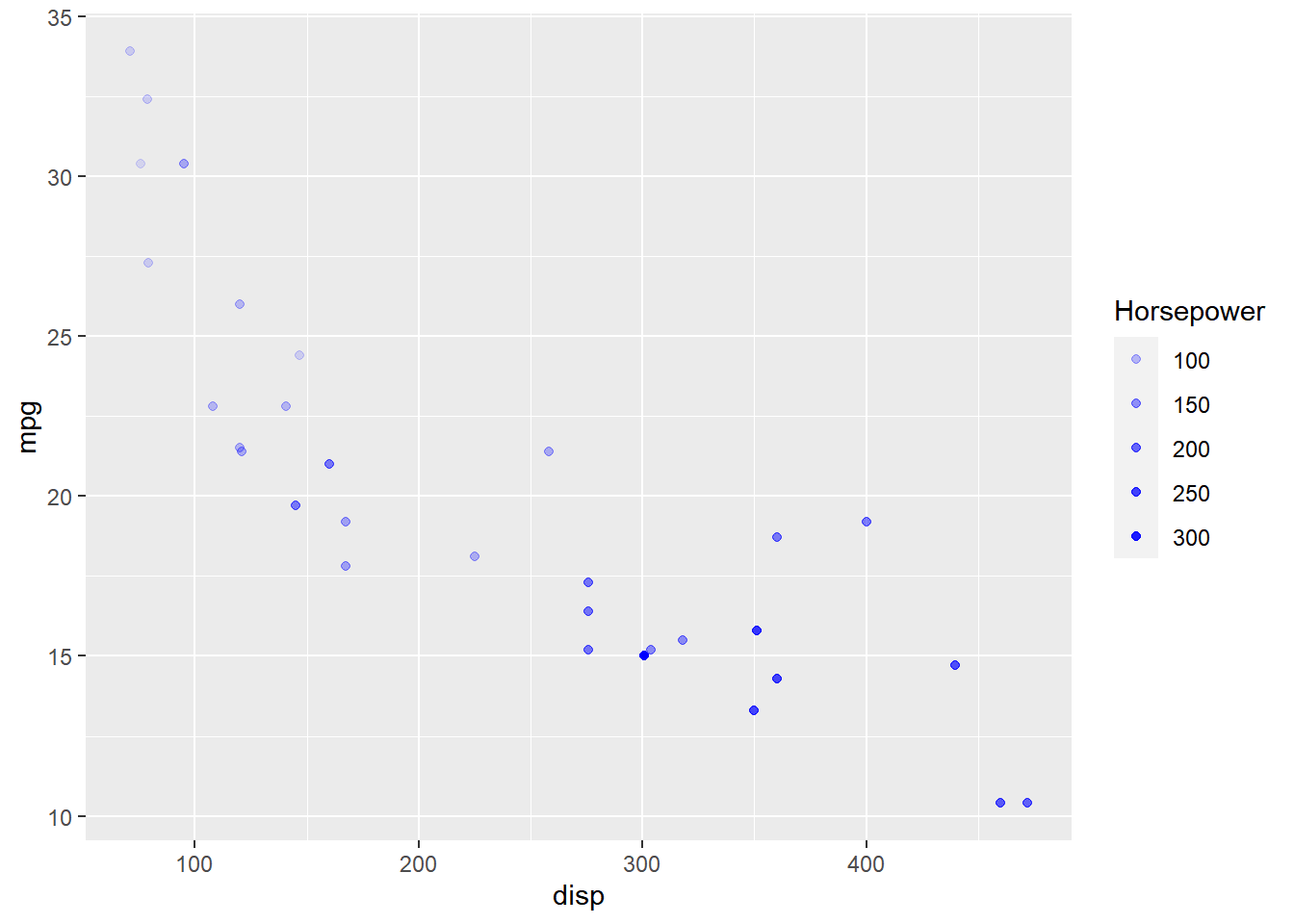

The title of the legend (hp) is not very intuitive. If the user does not know the underlying data, they will not be able to make any sense out of it. Let us change it to Horsepower using the name argument.
ggplot(mtcars) +
geom_point(aes(disp, mpg, alpha = hp), color = 'blue') +
scale_alpha_continuous("Horsepower")

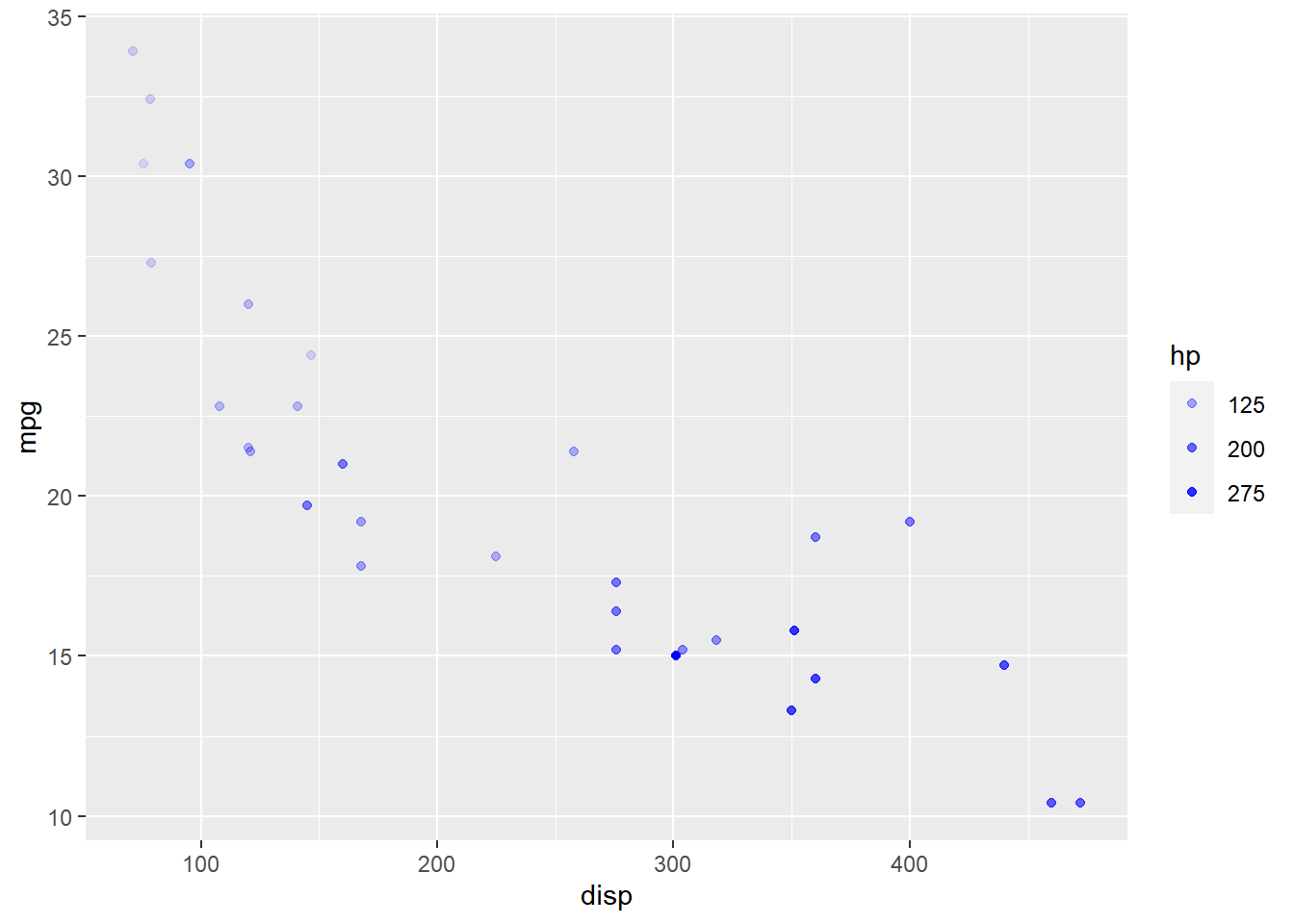

When the range of the variable mapped to size is large, you may not want the labels in the legend to represent all of them. In such cases, we can use the breaks argument and specify the labels to be used. In the below case, we use the breaks argument to ensure that the labels in legend represent certain midpoints (125, 200, 275) of the mapped variable.
ggplot(mtcars) +
geom_point(aes(disp, mpg, alpha = hp), color = 'blue') +
scale_alpha_continuous(breaks = c(125, 200, 275))

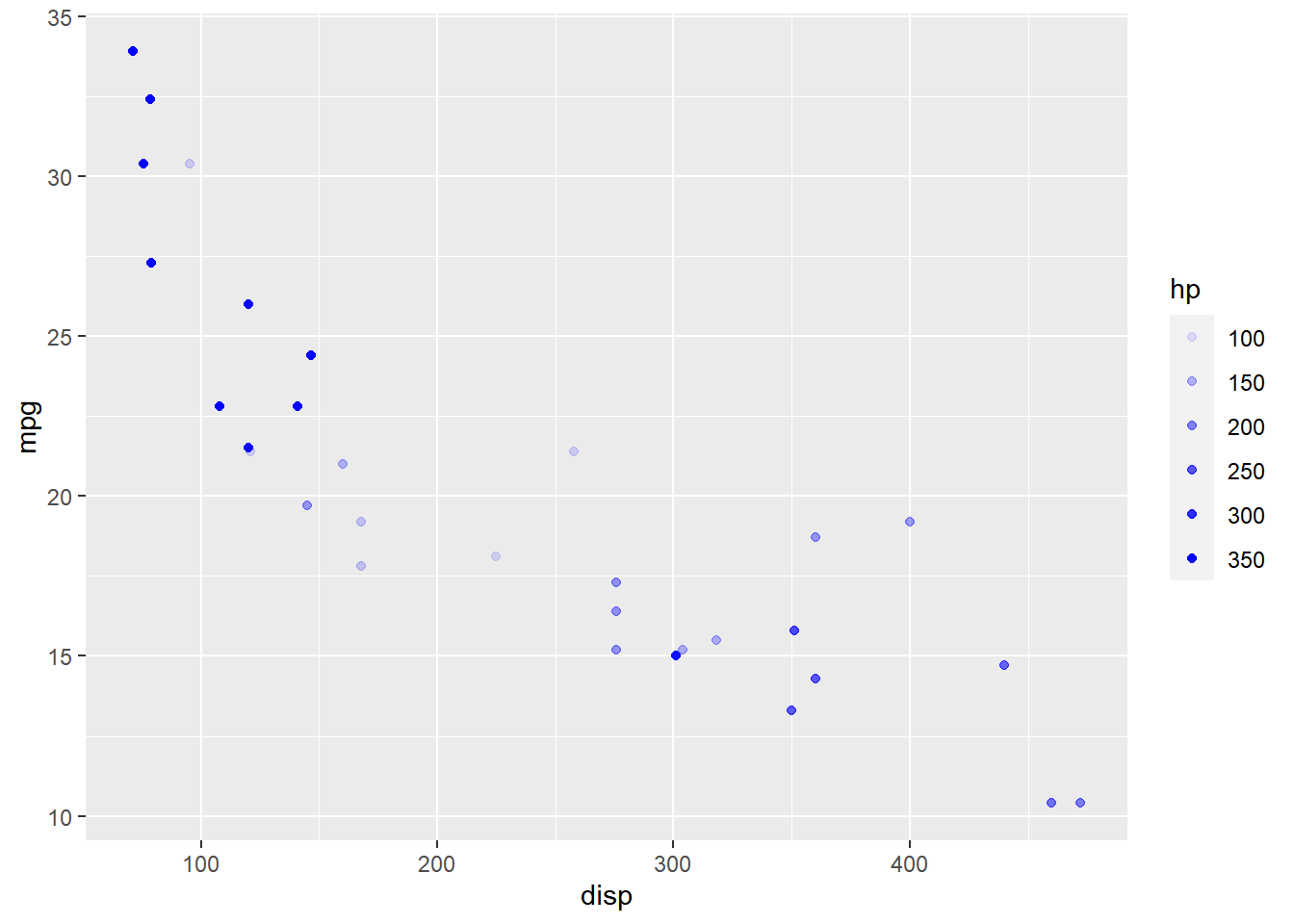

Let us assume that we want to modify the data to be displayed i.e. instead of examining the relationship between mileage and displacement for all cars, we desire to look at only cars whose horsepower is between 100 and 350. One way to approach this would be to filter the data using filter from dplyr and then visualize it. Instead, we will use the limits argument and filter the data for visualization.
ggplot(mtcars) +
geom_point(aes(disp, mpg, alpha = hp), color = 'blue') +
scale_alpha_continuous(limits = c(100, 350))

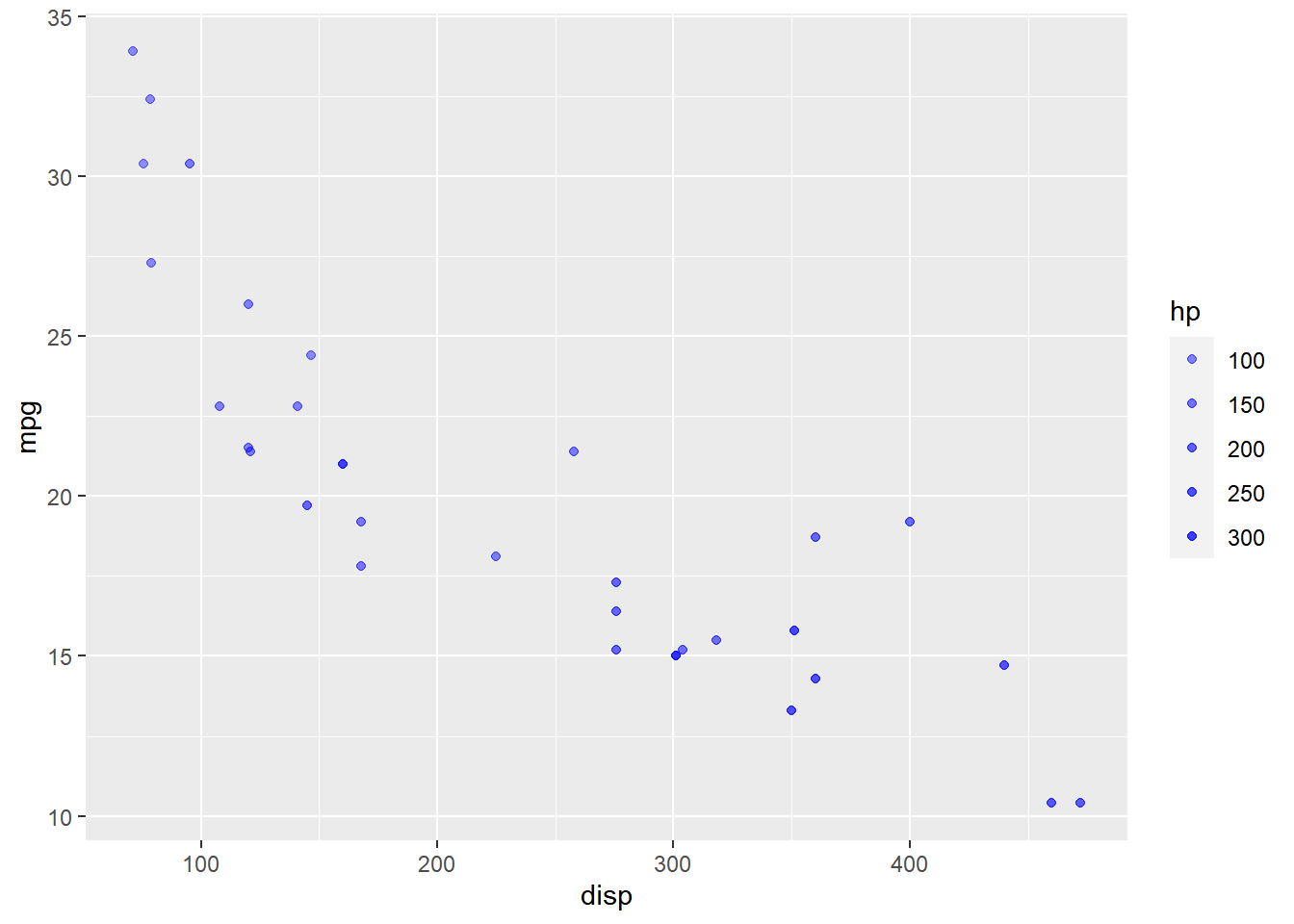

The range of the transparency of points can be modified using the range argument. We need to specify a lower and upper range using a numeric vector. In the below example, we use range and supply the lower and upper limits as 0.4 and 0.8. The transparency of the points will now lie between 0.4 and 0.8 only.
ggplot(mtcars) +
geom_point(aes(disp, mpg, alpha = hp), color = 'blue') +
scale_alpha_continuous(range = c(0.4, 0.8))

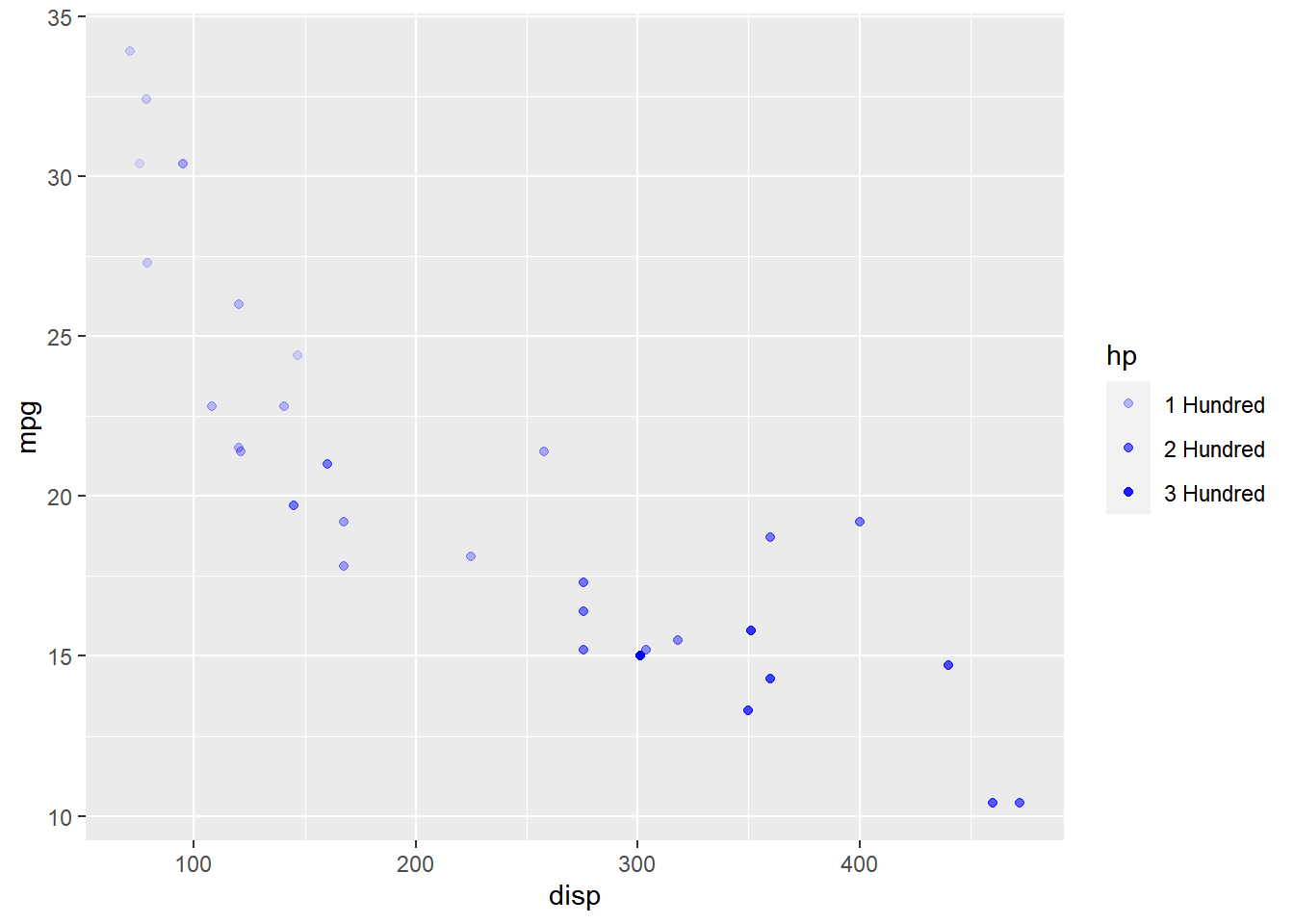

The labels in the legend can be modified using the labels argument. Let us change the labels to “1 Hundred”, “2 Hundred” and “3 Hundred” in the next example. Ensure that the labels are intuitive and easy to interpret for the end user of the plot.
ggplot(mtcars) +
geom_point(aes(disp, mpg, alpha = hp), color = 'blue') +
scale_alpha_continuous(breaks = c(100, 200, 300),
labels = c("1 Hundred", "2 Hundred",
"3 Hundred"))

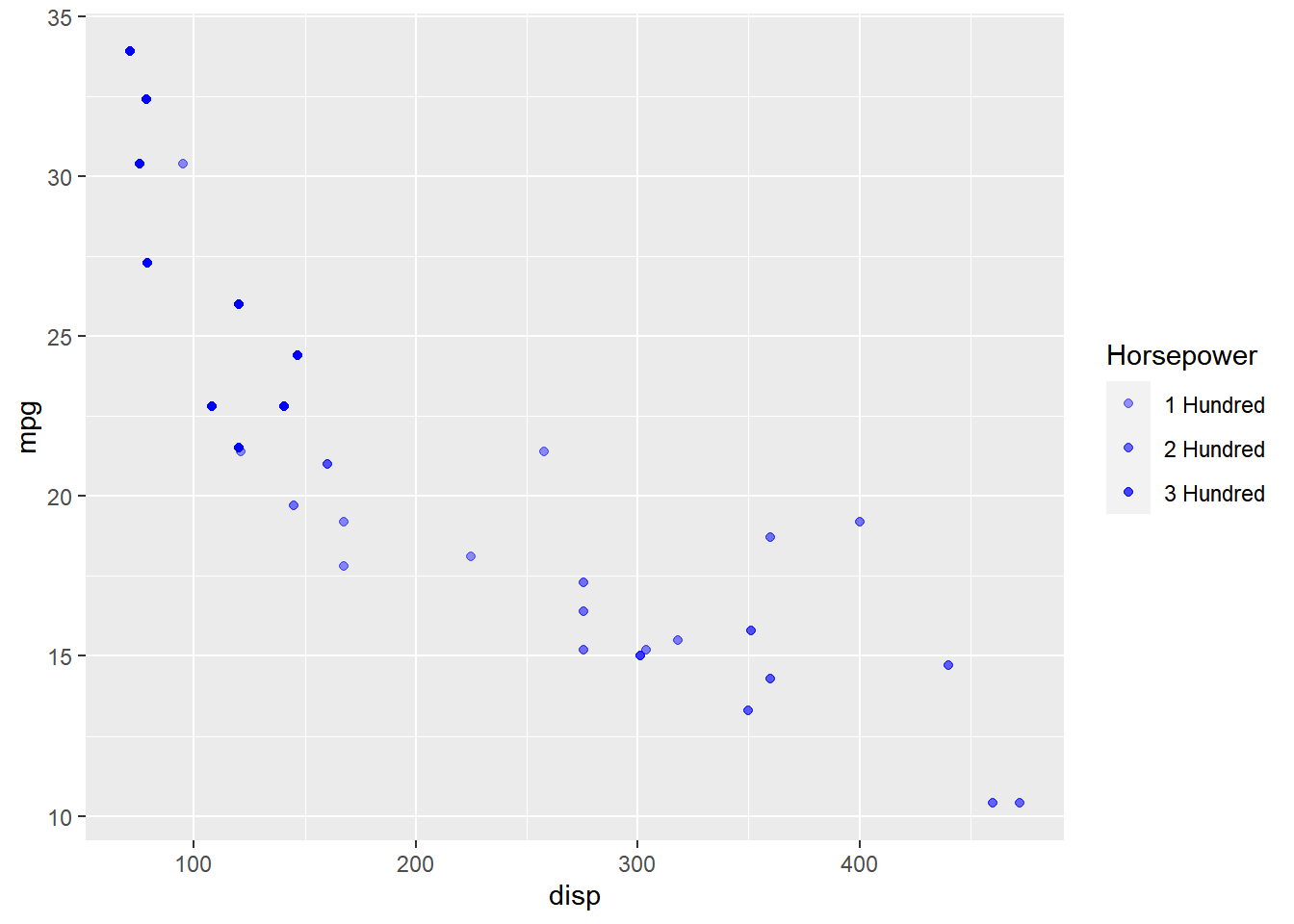

ggplot(mtcars) +
geom_point(aes(disp, mpg, alpha = hp), color = 'blue') +
scale_alpha_continuous("Horsepower", breaks = c(100, 200, 300),
limits = c(100, 350), range = c(0.4, 0.8),
labels = c("1 Hundred", "2 Hundred", "3 Hundred"))
In this post, we learnt to modify the following aspects of legends:
In the next post, we will learn how to modify the title, label and bar of the legend.
